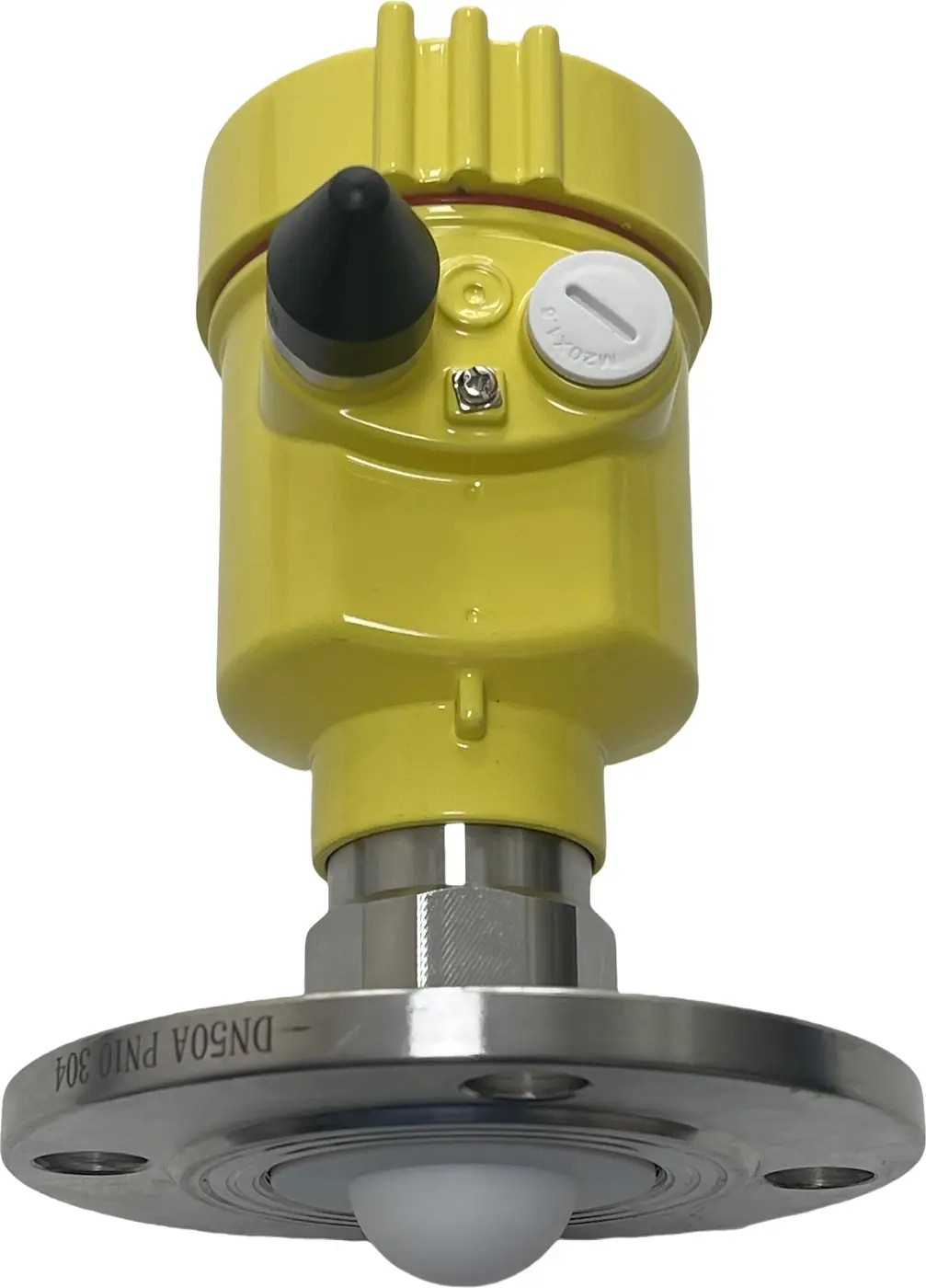

LoRaWAN Wireless Radar Level Sensor

Is an explosion-proof radar level monitoring sensor based on LoRa technology.With 80G high-frequency radar chip,it supports ranging under different working conditions such as solid and liquid,The millimeter-wave radar can penetrate obstacles such as light,rain,dust,fog,or frost to detect targets,making it a sensor that operates around the clock and in all weather conditions.It has the advantages of high integration,long range and strong anti-interference ability.The level sensor integrates an LCD screen display to view the current level height,the liquid level data is uploaded to the cloud platform via LoRa network.

LoRaWAN Wireless Radar Level Sensor Radar Level Sensor is an industrial explosion-proof radar for ranging in different operating conditions such as solids and liquids.

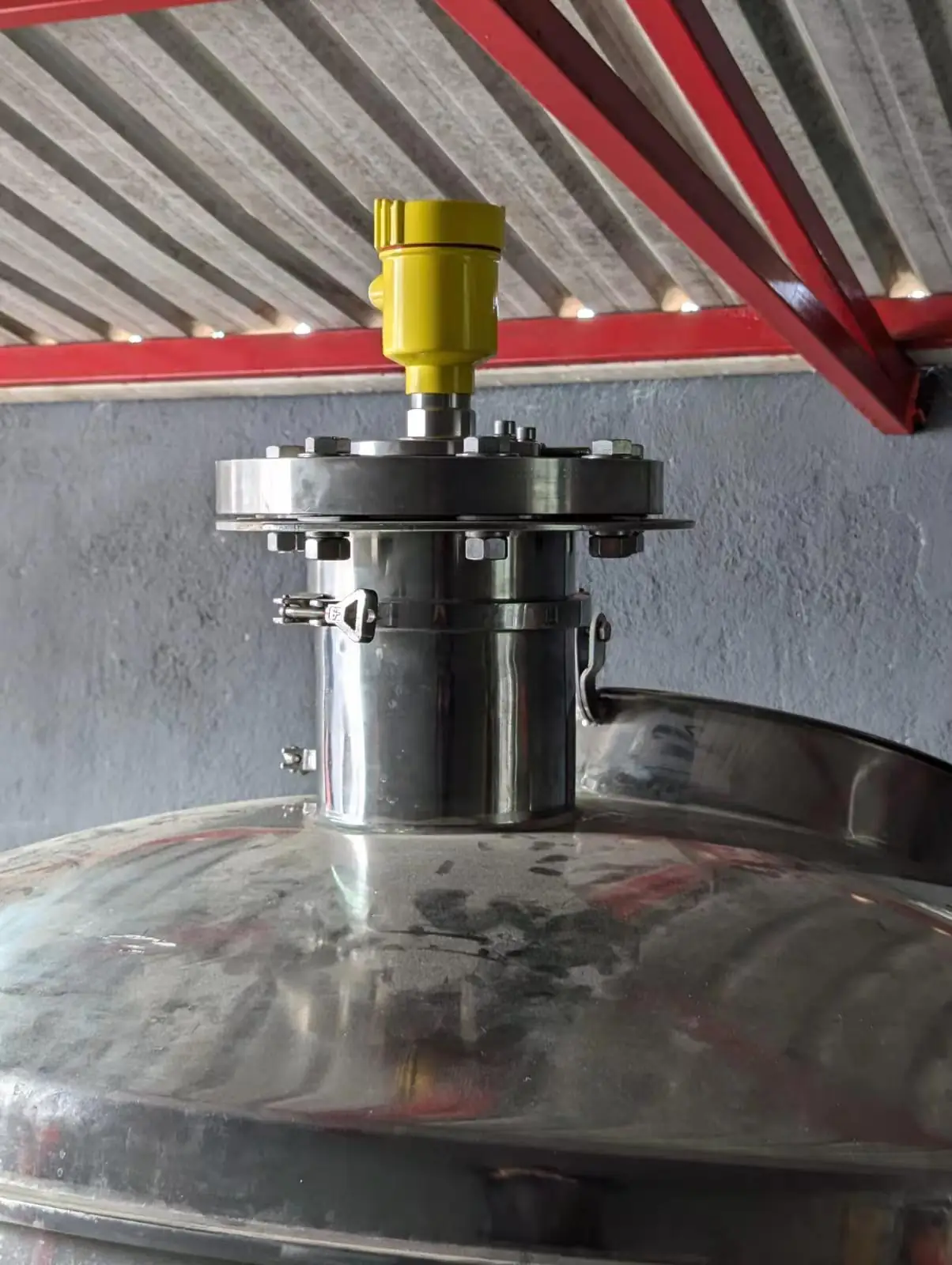

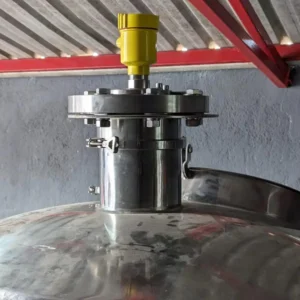

The product is widely used in liquid level measurement in industries such as water supply, sewage, petroleum, chemical, metallurgy, food, pharmaceutical, papermaking and mining.

Features

Supports LoRaWAN protocol
Built-in 19000mAH battery
Supports bluetooth and LoRa P2P wireless configuration

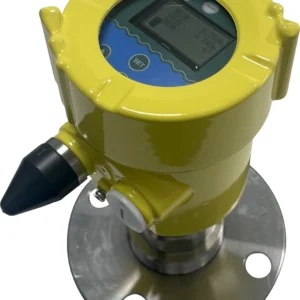

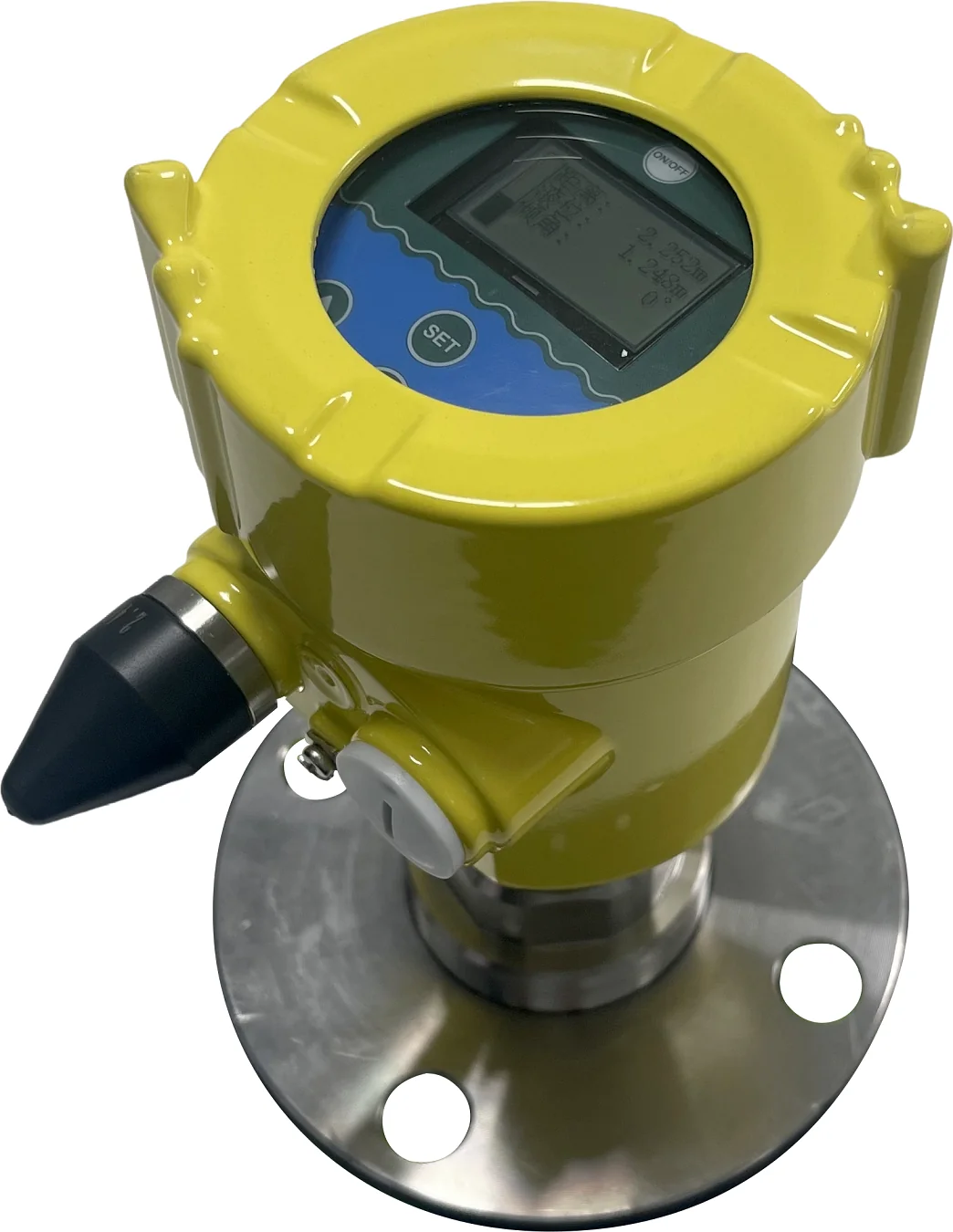

Built-in LCD screen display
Explosion-proof design
Accuracy: ±2mm
Ultra low power consumption

Product Specifications

Lora Antenna	External Omni Antenna
Data TX Rate	300bps～5.4Kbps
Operating Frequency	CN 470MHz~510MHz EU 863MHz~870MHz US 902MHz~928MHz AS 923MHz AU 915MHz~928MHz
Max Tx power	19dBm
Max Rx Sensitivity	-140dBm (SF12)
Measurement Frequency	80GHz
Radar Sensor Accuracy	±2mm
Accuracy	±10%@100Hz
Operating Temperature	-20℃ to 125℃
Operating Humidity	10% to 95%Rh (Non-condensing)
Built-in Battery	?
Battery Capacity	3.6 V / 19000mAH

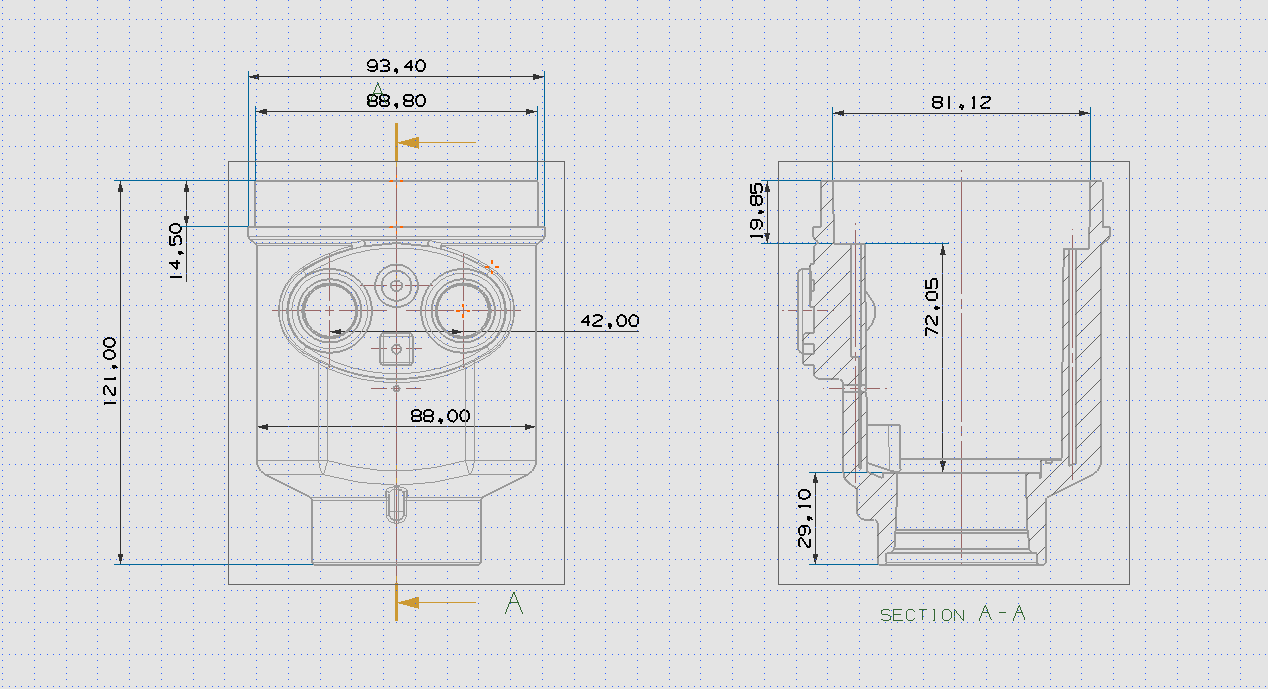

Product size	93mm x 121mm x 93mm
IP Rate	IP67
MOQ	50 SQM
NRC	0.88 from ISO354
Fire protection performance	Class A
Eco-Friendly	E1
