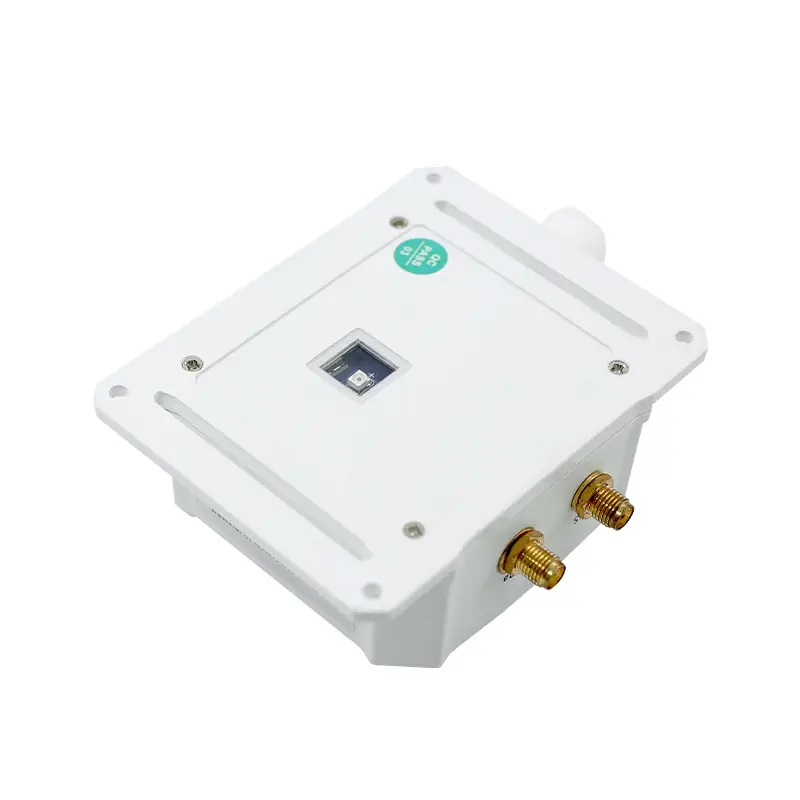

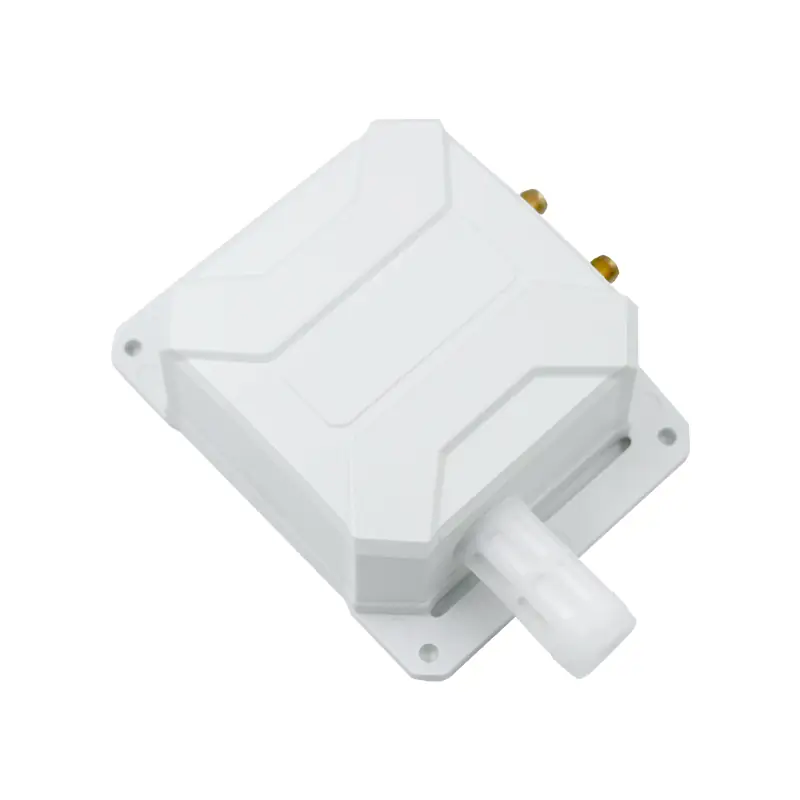

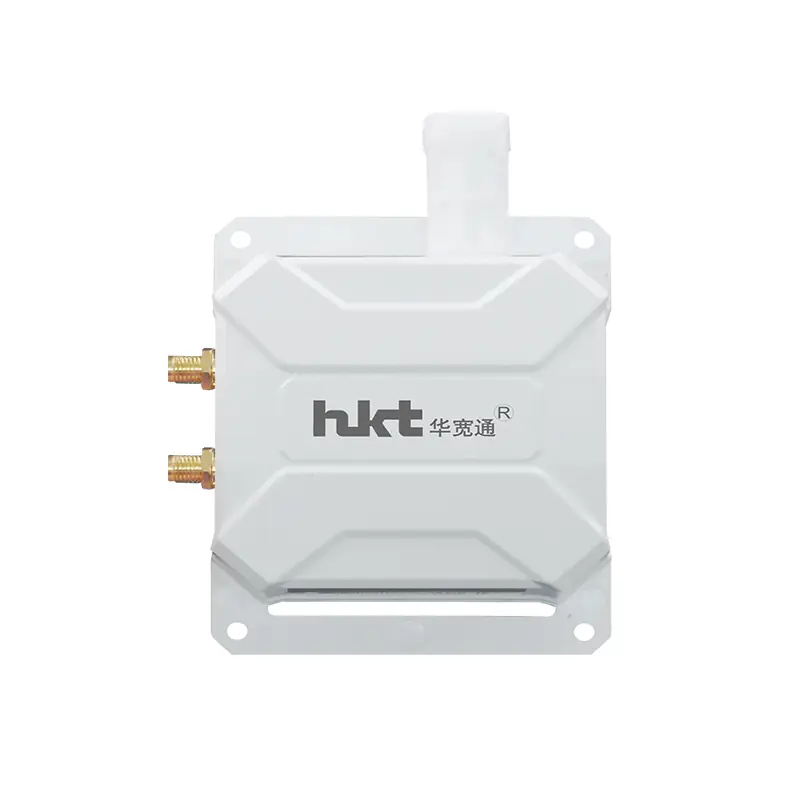

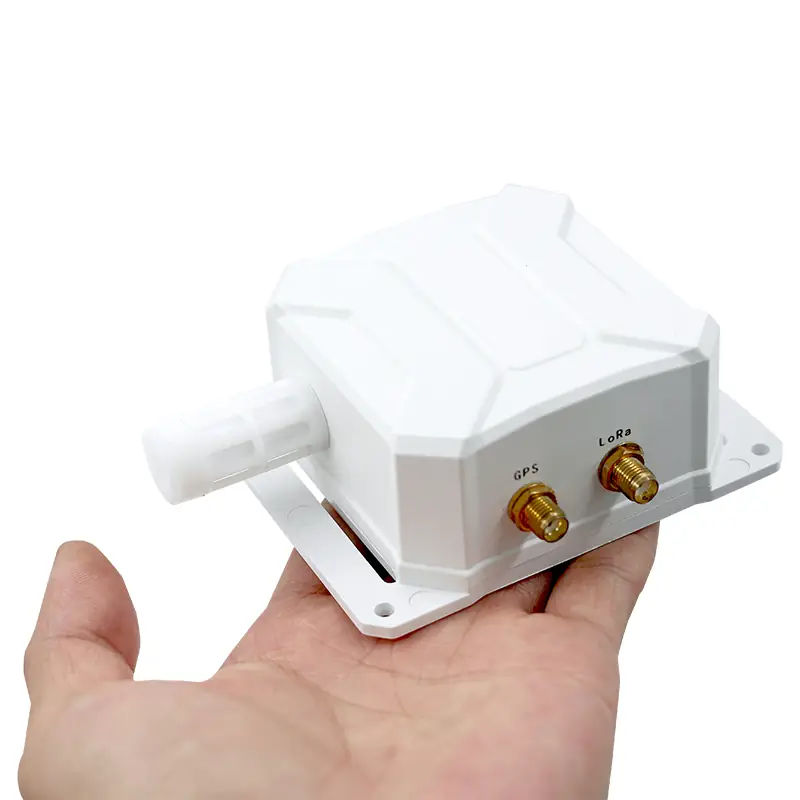

HKT GT-30 is equipped with the latest LoRaWAN technology, providing you with real-time temperature and humidity data transmission over long distances. The sensor features high accuracy, fast response time, and a low power consumption design, making it ideal for a variety of applications. Whether you’re monitoring the temperature and humidity in your greenhouse, warehouse, or any other indoor or outdoor environment, this sensor has you covered. With its simple integration into the LoRaWAN network, you can easily access and analyze data from anywhere, at any time.
Features
- Integrate multiple sensing functions: It integrates gps tracking, accel erometer and temperature &humidity acquisition all in one.
- Excellent hardware design: Making sophisticated technology,high security, uv protective housing, ip67.
- Easy to use: Simple to use,support magnet quick turn on/off.
- Long communication distance: Lorawan communication technology,max communication distance up to 11km easy.
- Long battery life: Low power consumption, using standard 8000 mah large c apacity lithium battery working more than 3 years.
- Good compatibility: Compatible with standard LoRaWAN gateways and third-party network server platforms.
HKT provides customized services
- ODM
- Pre-sales & After-sales Services
- Technology Support
Product Specifications
| External LoRaWAN (Internal optional) | Length: 1M Gain: 3dBi |
| External GPS (Internal optional) | Length: 1M Gain: 25dBi |
| Temperature Range | -30℃ to 70℃ |
| Temperature Acquisition Accuracy | 0℃ to 70℃ within range: ±0.3℃ -30℃ to 0℃ within range: ±0.6℃ |
| Humidity Resolution | 0.1℃ |
| Humidity Range | 0%~100%RH |
| Humidity Acquisition Accuracy | 10% to 90%RH within range: ±3% or ±5% |
| Humidity Resolution | 0.5%RH |
| GPS Frequency | L1 Frequency: 1575.42 MHz |
| GPS Rx Sensitivity | Tracking: -165 dBm Acquisition: -148 dBm |
| GPS Positioning Accuracy | 5~10 meter |
| GPS Positioning Time | Cold start – 30s (open sky) and Hot start – 1s |
| Communication | Standard LoRaWAN protocol |
| Operating Frequency | EU 868 / US 915 / AU 915 / KR 920 / AS 923 |
| Output Power | 19dBm (470) / 16dBm (868) / 20dBm (915) |
| Sensitivity | -147dBm @300bps |
| Operating Mode | OTAA/ABP Class A |
| On/Off Mode | Buzzer for 2s means turn on / Buzzer for 5s means turn off |
| Software Function | Support motion detection, device positioning, temperature and humidity collection and threshold alarm functions |
| Power Supply | 2pcs of 8000mAh ER18505 lithium, Batteries |
| Battery Life | > 3yeas (Reporting temperature and humidity ~60minutes; GPS Location ~24hours; 10 alarms a day, SF10) |
| Working Temperature | -30℃ to 70℃ |
| Current | ≤12μA |
| IP Rate | IP67 |
| Installation | Wall-Mounted |
| Product size | 105mm x 65mm x 32mm |
| MOQ | 50 SQM |
| NRC | 0.88 from ISO354 |
| Fire protection performance | Class A |
| Eco-Friendly | E1 |
Applications
- Wireless Alarm and Security Systems: Alert on extreme conditions in security systems.
- Home Automation: Regulate indoor climate and enhance comfort.
- Automated Meter Reading: Efficiently collect data for utility billing.
- Industrial Monitoring and Control: Control and maintain optimal conditions.
- Long range Irrigation Systems: Optimize water use for agriculture.
- Heat Distribution: Monitor heat levels in buildings.
- Indoor climate control.
- Prevention of building damage: Prevent moisture-related structural issues
- Food Safety: Monitor storage conditions for perishables.
