LoRaWAN Smoke Detector

As a smoke detector factory, HKT Lora produces LoRaWAN Smoke Detection Sensors that can protect your home, office, premise or industrial space from fires and smoke. When smoke is detected in a room, the Smoke sensor produces light, a sound and generates a LoRaWAN Alert message.This smoke sensor is ideally placed on the ceiling.

Category:

HKT-SD100 is a smoke detection product that supports the standard LoRaWAN. It adds wireless transmission and wireless networking functions to the traditional independent smoke detector, and transmits fire alarm information wirelessly in real time.

LoRaWAN smoke detector can report to the remote monitoring platform, so it is convenient for the monitoring personnel to know the fire alarm, dealing with it in time, to realize the centralized monitoring and management of the independent smoke detector.

Features

  • Battery powered, no wiring required; wireless transmission, convenient for networking
  • Support LoRaWAN™ standard, system application can be expanded (optional)
  • Support NB-IOT standard (optional)
  • Smoke detection, sound and light alarm, tamper alarm, undervoltage alarm, remote silencer, platform linkage
  • Support remote upgrade and remote configuration
  • Low battery voltage prompt

HKT provides customized services

  • ODM
  • Pre-sales & After-sales Services
  • Technology Support

Product Specifications

Communication Standard LoRaWAN protocol
Type of alarm Led indicator on, Alarm sound, wireless remote alarm
Alarm Sound Output >80dB (at 3m)
Smoke detecting IR photoelectric smoke detection
Temperature detecting Detecting ambient Temperature
Frequency CN470, EU868, US915, AU915, AS923, IN865
Working temperature -20℃ to 50℃
Working Humidity 10% to 95%RH (Non-condensing)
Battery 1500mAh Lithium manganese battery
Battery type 3.0V Built-in Li-SOCL2 battery
Product size Ø110 x 50mm
MOQ 50 SQM
NRC 0.88 from ISO354
Fire protection performance Class A
Eco-Friendly E1

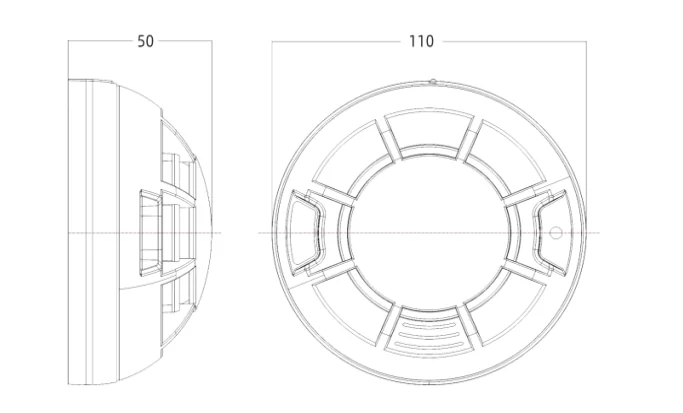

Dimensions

Applications

  • Home Safety: Alert residents and authorities about smoke and fire hazards.
  • Commercial Spaces: Enhance fire detection in offices, stores, and public buildings.
  • Industrial Settings: Monitor manufacturing environments for potential fire risks.
  • Smart Cities: Contribute to urban safety by detecting fires in public areas.
  • Warehouse Monitoring: Safeguard goods and facilities from fire damage.
MOQ

50 SQM
NRC

0.88 from ISO354
Fire protection performance

Class A
Eco-Friendly

E1
