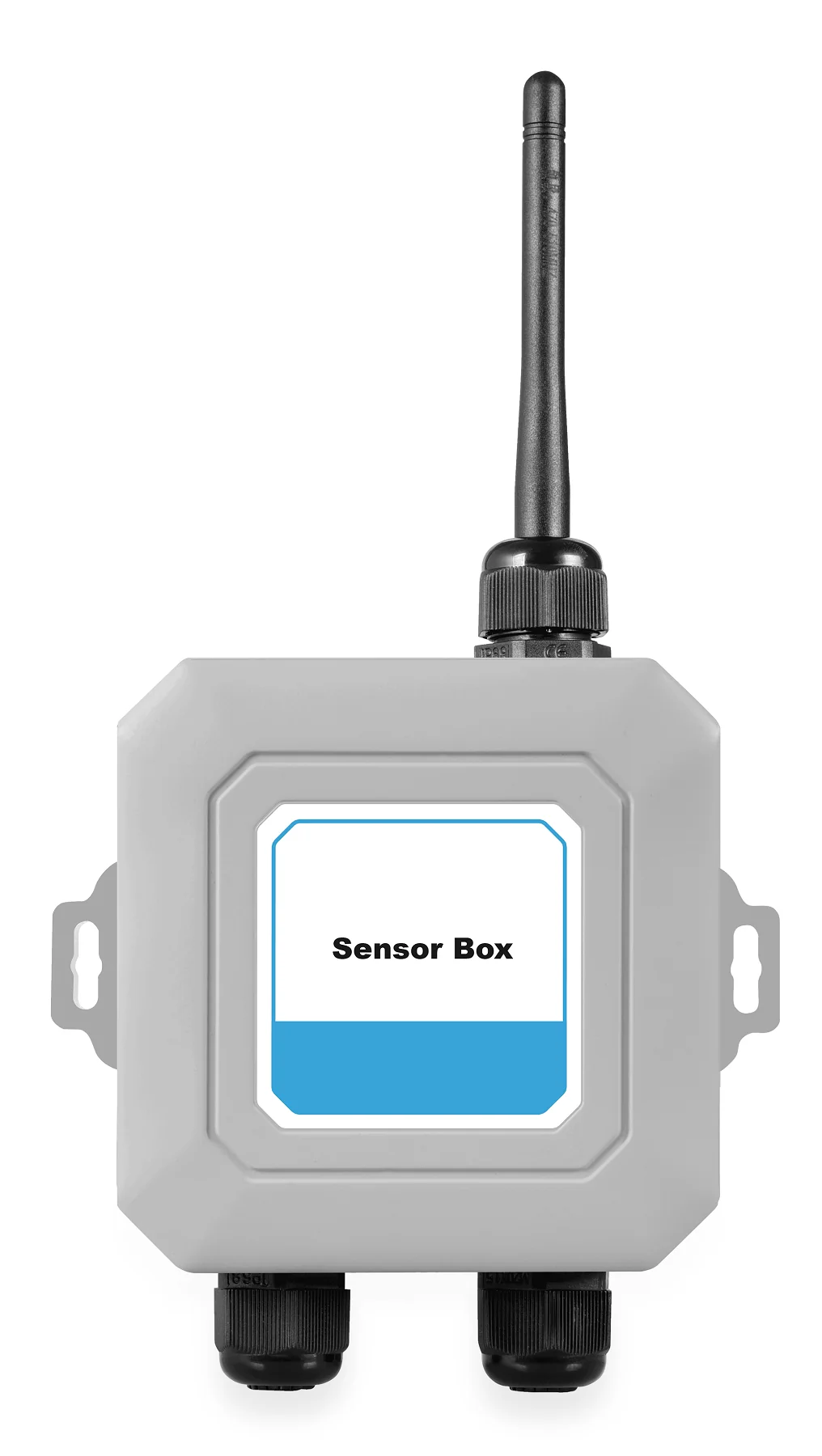

LoRaWAN Sensor Box

Compliant with LoRaWAN. It has been integrated with multiple communication ports for a variety of sensors. Its high-gain omni-directional external antenna expands the communication distance. External power supply and battery power supply are optional. With battery capacity Up to 19000mAh, it enables a long lifespan, reduces cost of battery replacement. It has a rugged enclosure with IP65 ingress protection rate. It can be fixed by pole-mounted and wall-mounted method, installed on pole, walls of the building, roof and etc.

Category:

Suitable for workshop, warehouse, agricultural greenhouse, docking within scenarios such as rooms, hydrological monitoring sensors, e.g.: hydraulic pressure sensors, liquid level sensor, liquid flow sensor, water sensor, temperature sensor, humidity sensor, light sensor, PM2.5, angle sensor, wind speed sensor, etc.

Features

  • Supports LoRaWAN protocol
  • Integrates multiple communication interfaces: SPI, UART, ADC, GPIO, I2C,etc.
  • Ingress Protection Rate: IP65
  • Low power consumption,external power supply and built-in battery optional
  • Battery power supply mode uses a large capacity battery of 19000mAh
  • Supports multiple voltage outputs:3.3V, 5V, 9V, 12V, etc.
  • Supports wired and wireless parameter configuration and firmware upgrades
  • Supports remote configuration
  • Supports low battery alarm
  • Supports heartbeat package reporting, heartbeat interval is configurable

Product Specifications

Lora Antenna Omnidirectional external antenna
Communication Port UART, SPI, I2C, GPIO, ADC, RS485
Data TX Rate 300bps～5.4kbps
Operating Frequency CN470MHz~510MHz
EU863MHz~870MHz
US 902MHz~928MHz
AS 923MHz~925MHz
AU 915MHz~928MHz
CT 850MHz
Max Tx power 19dBm
Max Rx Sensitivity -141dBm (SF12)
Max Link Budget 160dB
Operating Temperature -20℃ to 70℃
Operating Humidity 10% to 95%Rh (Non-condensing)
Built-in Battery DC5-24V input (optional)
Battery Capacity 3.6V / 19000mAH
Sleep Current ≤6uA
TX Current ≤125mA
RX Current ≤16mA
External Sensors Suitable RS485 port
PT1000 port
I2C port
GPIO port
ADC port
Product size 110mm x 110mm x 45mm
IP Rate IP65
MOQ 50 SQM
NRC 0.88 from ISO354
Fire protection performance Class A
Eco-Friendly E1

External Sensors Suitable
RS485 port: suitable for wind speed sensor, wind direction sensor, GPS, water meter, electricity meter and gas meter, etc…
PT1000 port: temperature sensor
I2C port: gravity sensor, temperature and humidity sensor, etc.
GPIO port: suitable for immersion sensor, angle sensor, smoke detector (software not support temporary)
ADC port: pressure sensors, liquid level sensors, temperature and humidity sensors, light sensors, flow sensors, carbon dioxide sensors, etc.

Dimensions

MOQ

50 SQM
NRC

0.88 from ISO354
Fire protection performance

Class A
Eco-Friendly

E1
