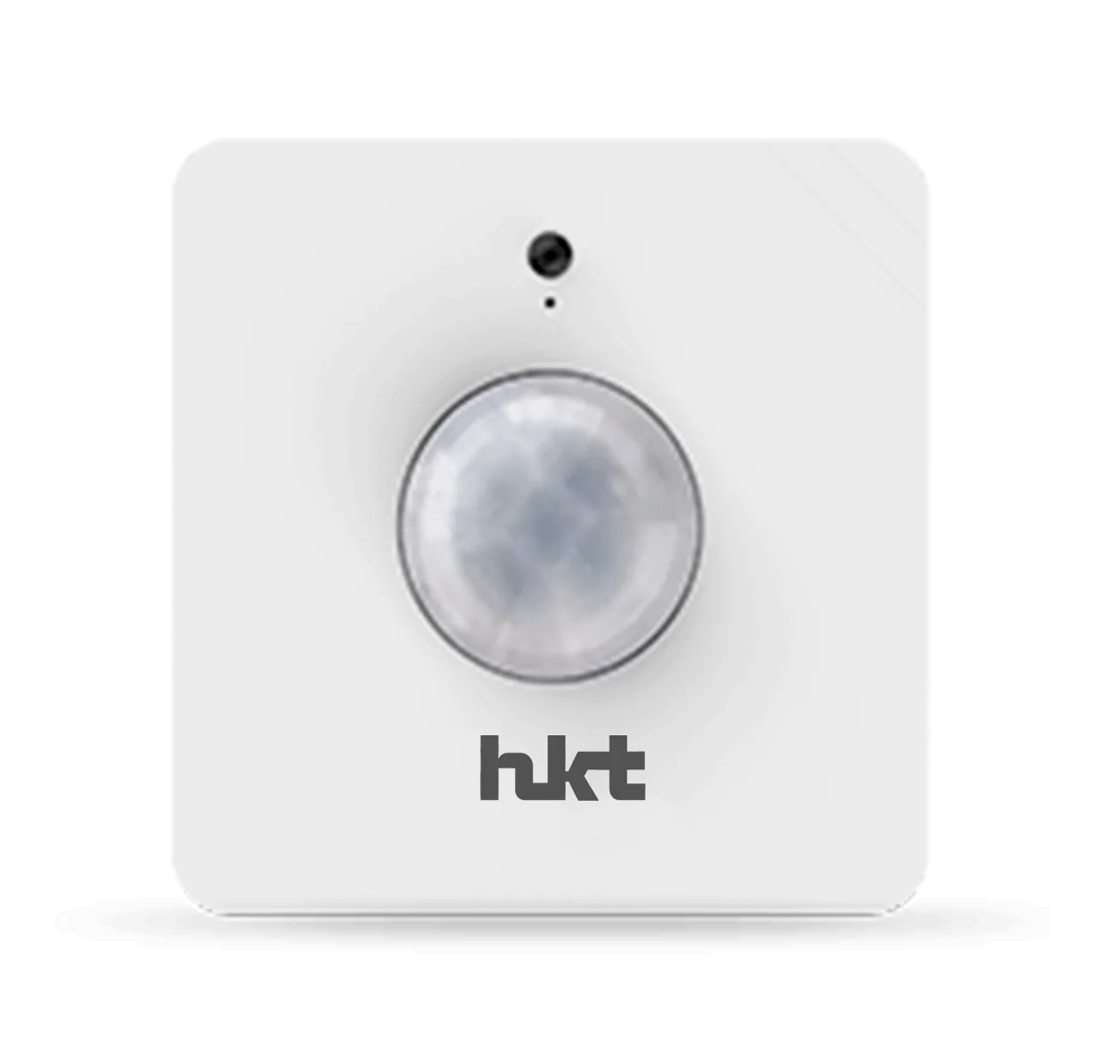

LoRaWAN PIR Sensor

The LoRa PIR sensor based on passive infrared technology to detect a motion or occupancy. It can detect whether there is movement within the range of 6-8m and send the changes via LoRaWAN* network. Besides, the device equips with light sensor which can link PIR detection results to trigger scenes. With compact size and powered battery, it is easy to install everywhere. Compliant with HKT LoRaWAN* gateway and HKT IoT Cloud solution, users can know the alarms or occupancy of rooms and trigger other sensors or appliances easily via web page or mobile App remotely. It can be widely used in smart homes, smart offices, schools, warehouses, etc.

Category:

The LoRa PIR sensor based on passive infrared technology to detect a motion or occupancy. It can detect whether there is movement within the range of 6-8m and send the changes via LoRaWAN* network.

Features of LoRaWAN Smart Door Lock

  • Supports LoRaWAN
  • Supports wireless remote real time alarm
  • Ceiling-mounted or wall-mounted installation
  • Detection range 8~10 meters
  • Detection angle: 50°~60° .
  • Supports anti-tamper alarm
  • Supports low power alarm
  • Supports status report
  • Built-in 8000mAh battery with 5 years lifespan

Product Specifications

Antenna Built-in LoRa Antenna
Data TX Rate 300bps~5.4Kbps
Operating Frequency CN470-510MHz
EU863-870MHz
US902-928MHz
AS923MHz
AU915-928MHz
KR920-923MHz
Max Tx power 19dBm
Rx Sensitivity -141dBm (SF12)
Detection Range 8-10m
Detection Angle 50°~60°
Installation height 1.5m~2.0m
Operating Temperature -10℃ to 55℃
Operating Humidity 10%~95% (no Condensing)
Standby Current ≦10uA
Battery type Built-in Li-SoCl2 8000mAh battery
Standby Current ≦10uA
Detection Current ≦25uA
Tx Current ≦125mA
Product size 86mm x 86mm x 23mm
IP Rate IP65
