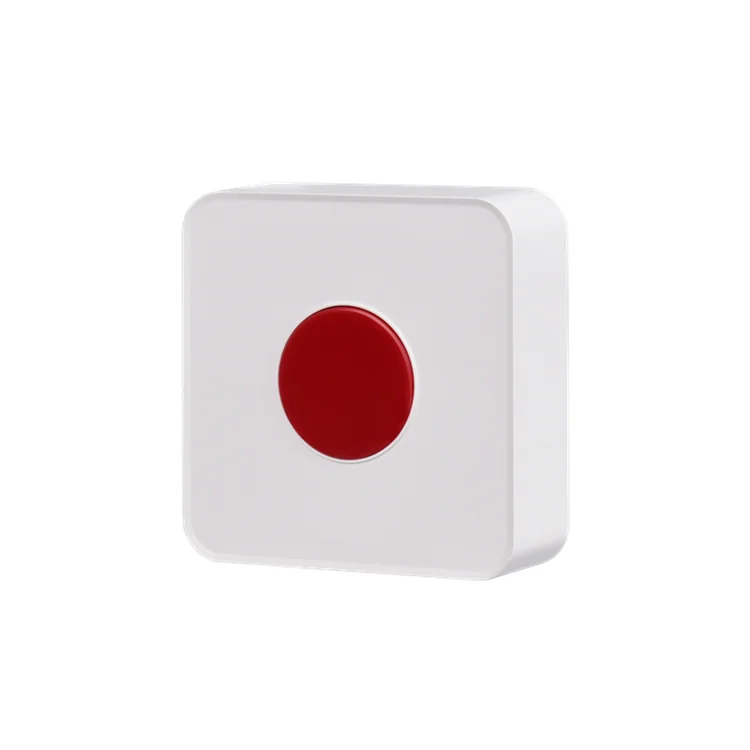

LoRaWAN One-button SOS Alarm

The AN-301 is a versatile one-button SOS wireless alarm device that operates on the LoRaWAN protocol, designed for quick response to emergencies like terrorist attacks, fires, explosions, or stampedes. With SOS button press, it sends an alarm signal to a monitoring platform, ensuring prompt attention from personnel. The device is equipped with a high-capacity battery, easy to install without extensive wiring, and boasts low power consumption with a broad transmission range, making it suitable for a wide range of environments including residential homes, commercial buildings, banks, hotels, schools, libraries, and exhibition halls.

LoRaWAN One-button SOS Alarm SOS Button adopts LoRa RF technology, and supports LoRaWAN protocol. It needs simple networking, long-distance transmission and low power consumption. With built-in high capacity battery, it is wireless and easy for installation. When you are in an emergency situation, press the SOS button. The alarm signal is sent through wireless transmission to the monitoring platform. Security can be deployed in time.

Features

Supports LoRaWAN protocol
One-button SOS alarm
Built-in 4000mAh battery
Support low power alerts
It supports optional pull-rope and anti-tamper alarms
Low power consumption

Product Specifications

Lora Antenna	Built-in antenna
Button	SOS trigger alarm
Data TX Rate	300bps～5.4Kbps
Operating Frequency	CN 470-510MHz EU 863-870MHz US 902-928MHz AS 923MHz AU 915-928MHz KR 920-923MHz
Max Tx power	19dBm
Max Rx Sensitivity	-141dBm (SF12)
Operating Temperature	-10℃ to 50℃
Operating Humidity	10%~95%Rh (Non-condensing)
Built-in Battery	Built-in Li-SoCl2 battery
Battery Capacity	3.6V / 4000mAh
Standby Current	≤6uA
Rx Current	≤16uA
Tx Current	≤125mA
Product size	86mm x 86mm x 26mm
MOQ	50 SQM
NRC	0.88 from ISO354
Fire protection performance	Class A
Eco-Friendly	E1
