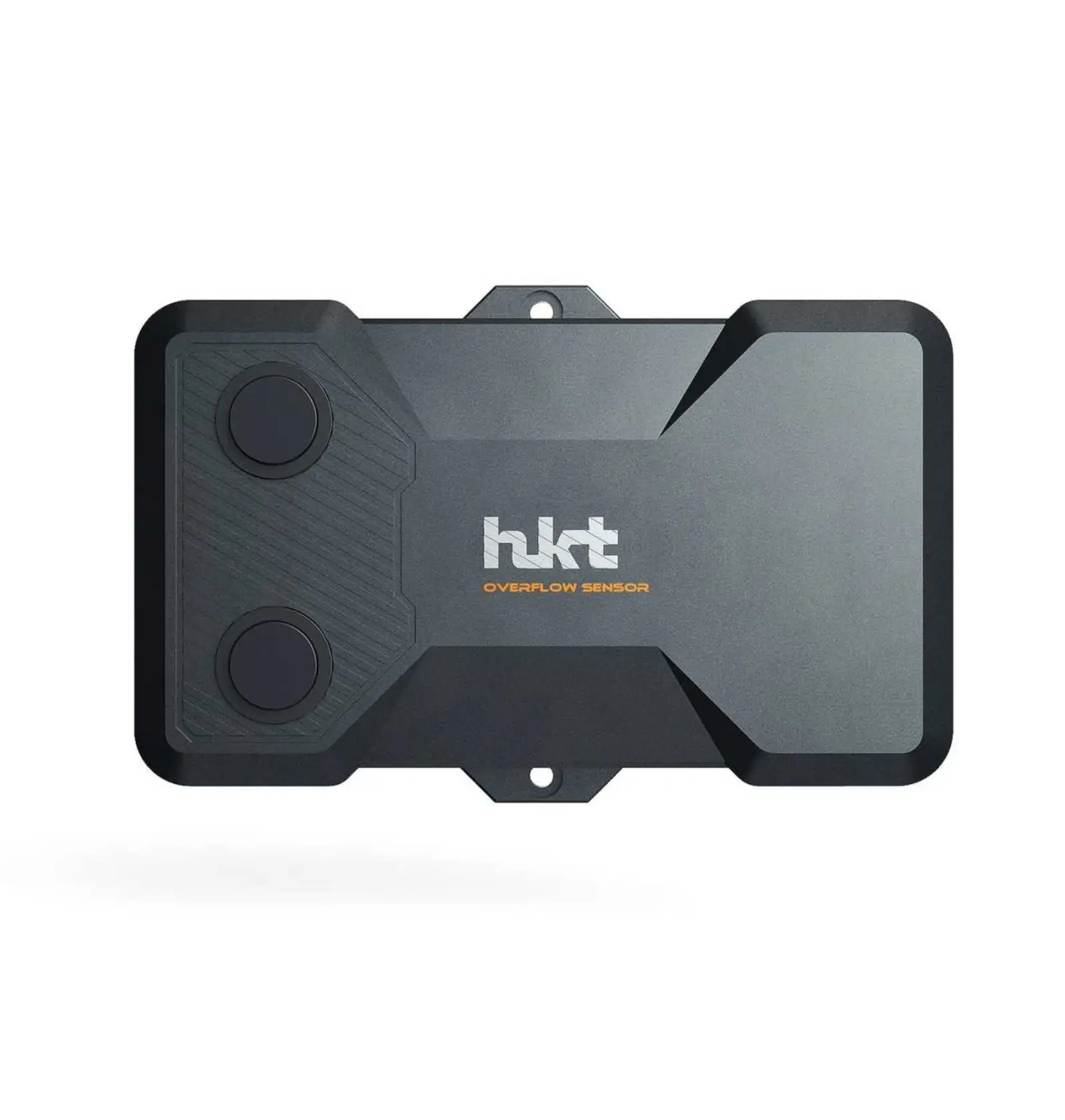

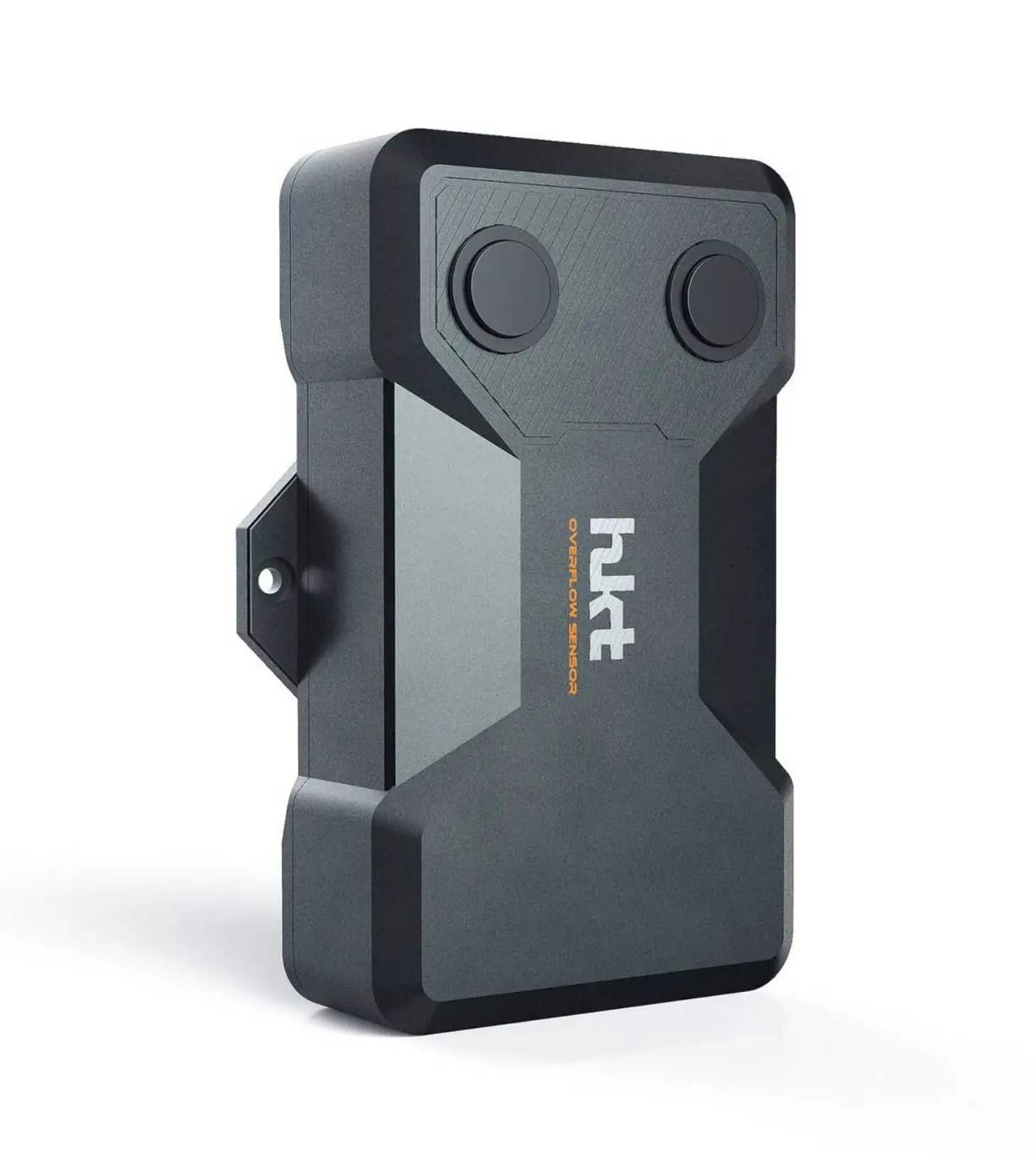

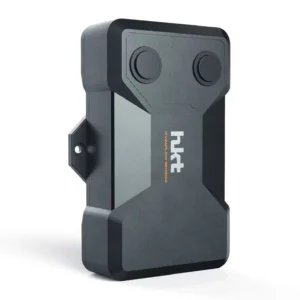

LoRaWAN Multifunctional Ultrasonic Distance Sensor

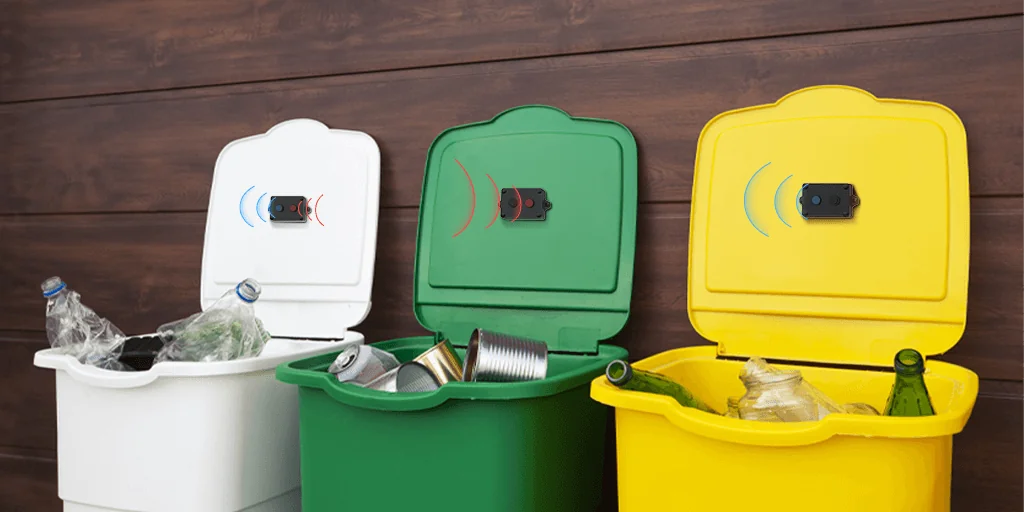

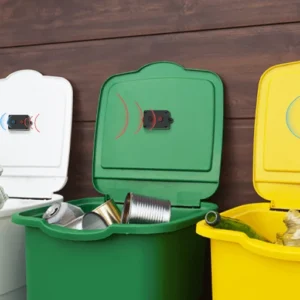

HKT-UDS100 is based on the standard LoRaWAN® IoT protocol, adopts low-power design, and is powered by lithium batteries. It can last for 5-10 years depending on the scenario (the battery is replaceable). Uses the principle of ultrasonic ranging. The product has IP67 waterproof level and the shell has flame retardant components. It can still work normally in harsh environments, and long-term use will not affect the measurement accuracy and performance. It is suitable for ranging of various types of trash cans and parking spaces. It is widely used in public trash cans, parking space detection and other scenarios. It can effectively solve the outstanding problems of sanitation operations such as unclear overflow of trash cans, low efficiency of collection and transportation operations, and unreasonable distribution of trash cans.

Features

• Long communication distance: The maximum communication distance in an open environment can reach 5KM
• Wide detection range: 3~450cm detection range, meeting variety scenarios
• Small blind area: Only 3cm ultra-small blind spot, suitable for close-range targets
• Protection level: IP67 waterproof, shell with flame retardant components
• Longtime standby: Low power consumption, easy to replace, powered by lithium batteries, can last 5-10 years depending on the scenario
• Non-contact detection: Distance measurement can be completed without contacting the object being measured
• Device posture perception: Built-in three-axis accelerometer, real-time monitoring of the device tilt state
• High measurement accuracy: Built-in temperature compensation function, more accurate measurement data
• Good compatibility: Compatible with standard LoRaWAN® gateways and third-party network server platforms
• Powerful functions: overflow detection (detection distance reading), support GPS positioning, Bluetooth OTA,

Product Specifications

Dimensions
