It also supports LTE functionality, allowing deployment in remote or low-connectivity areas. Overall, the HKT ID-100 can provide connectivity to over 1000 nodes and is an excellent choice for those seeking a robust and dependable IoT gateway.
Features
- Support 5V/3A power supply
- Based on the LoRaWAN Concentrator Engine: Semtech SX1302
- TX power up to 27dBm, RX sensitivity down to -139dBm @SF12, BW125kHz
- Support Wi-Fi 2.4G/5G
- IEEE 802.11b/g/n/ac
- Support BLE5.0
- Support Network Communication of 4G Module (LTE-TDD/LTE-FDD)
- Support GNSS
- One WAN/LAN variable network port
- RoHS/WEEE compliance (Lead-free)
- FCC, CE, IC compliance
HKT provides customized services
- ODM
- Pre-sales & After-sales Services
- Technology Support
Product Specifications
| CPU | Quad-core Cortex A53 |
| System | Linux |
| RAM | 2GB |
| EMMC | 40mm~80mm |
| Heaven and earth hook | 32GB |
| SD card | Up to 2TB |
| Power Supply | USB Type-C 5V/3A |
| Reset button | The reset button is a hole button, After pressing the reset button for more than 5 seconds, the Locator will be restored to the factory settings |
| Switch | On/Off power |
| Network Interface | RJ 45 |
| Indicator LED (RGB) | Power & battery LED, Wireless LED and LTE indicator |
| Wireless protocol | Zigbee, BLE ,WiFi, LoRaWAN |
| Installation method | Flat, Ceiling, DIN |
| Hardware encryption | ECC608 |
| Operating Temperature | -10℃~65℃ |
| Operating humidity | 10%~90% |
| IP rate | IP22 |
| Cooling | Heat dissipation silicone/aluminum |
| Current | 500mA@5V |
| Product size | 120mm x 120mm x 33,5mm |
| MOQ | 50 SQM |
| NRC | 0.88 from ISO354 |
| Fire protection performance | Class A |
| Eco-Friendly | E1 |
Dimensions

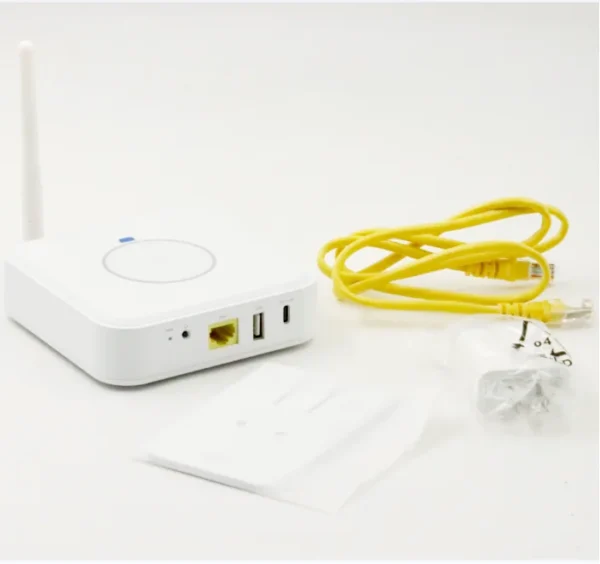

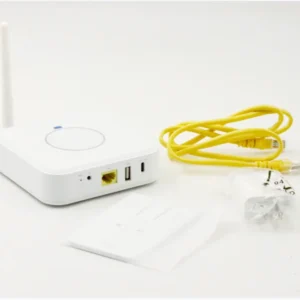

Package list
- Gateway
- Mounting bracket
- 3x Expansion bolt
- Power Adapter
- USB Data Cable
- Network Cable
