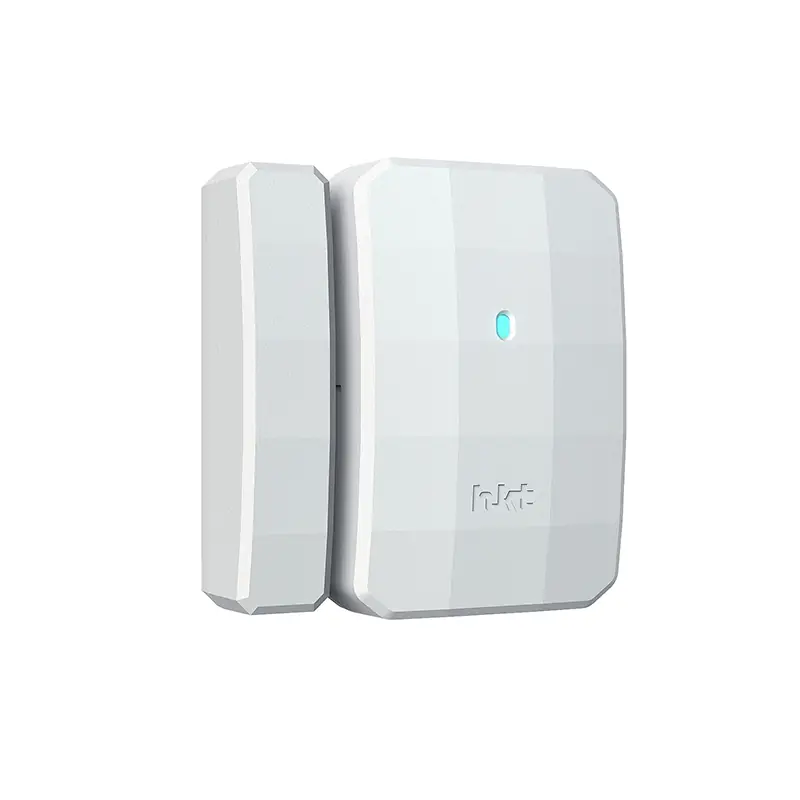

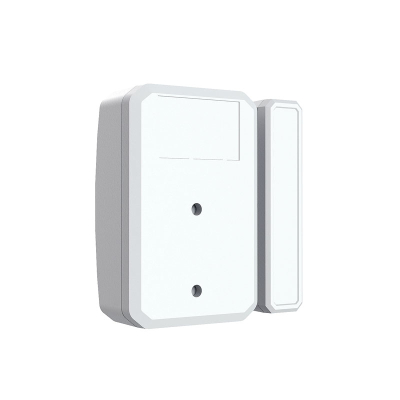

HKT DS-100 is a compact and powerful wireless door sensor. It uses magnetic and reed switches to monitor the opening/closing status of doors and windows in real-time and to realize remote alarms by using wireless LoRaWAN® technology.
It supports the standard LoRaWAN® protocol and is compatible with LoRaWAN® gateways and cloud platforms to jointly build an intelligent IoT network to remotely monitor the opening and closing status and receive alarms promptly. In addition, the product has a built-in 1650 mAh Li-SOCl2 battery, which can be used continuously for more than two years without replacing it (the reporting cycle of the door sensor is once per hour).
With its small size and no wiring, HKT DS-100 is easy to install, suitable for doors, windows, and cabinets of different materials, and is widely used for smart offices, computer rooms, cabinets, unmanned vending machines, smart homes, and other applications.
Features
- Suitable for various doors/windows of different materials.
- Support mounting tamper detection.
- LED for network status, open/close status, tamper and low battery indication.
- Ultra-wide-distance transmission up to line of sight of 15km.
- Built-in 1200 mAh replaceable battery can work continuously for 2 years.
- Equipped with NFC for one touch configuration.
- Function well with standard LoRaWAN® gateways and network servers.
- Compliant with HKT IoT Cloud.
HKT provides customized services
- ODM
- Pre-sales & After-sales Services
- Technology Support
Product Specifications
| Technology | LoRaWAN® v1.0.2 / v1.0.3 / v1.1.0 |
| Frequency | CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923 |
| Tx Power | 16 dBm (868 MHz) / 22 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Detection Distance | 15-20 mm |
| Button | 1x Power Button (Internal), 1x Tampering Button |
| LED | 1x |
| Configuration | Mobile App (via NFC) |
| Alarms | Open/Close Status, Tamper, Low Battery |
| Power Supply | 1x 1200 mAh ER14250 Li-SOCl2 battery |
| Battery Life | >2 years |
| Operating Temperature | -20℃ to 60℃ |
| Operating Humidity | 0% to 90%RH (Non-condensation) |
| IP Rate | IP20 |
| Product size | Sensor 50.5mm x 31mm x 18mm Magnet 30mm x 13mm x 10mm |
| Installation | On the flat surfaces with screws or 3M tapes |
| MOQ | 50 SQM |
| NRC | 0.88 from ISO354 |
| Fire protection performance | Class A |
| Eco-Friendly | E1 |

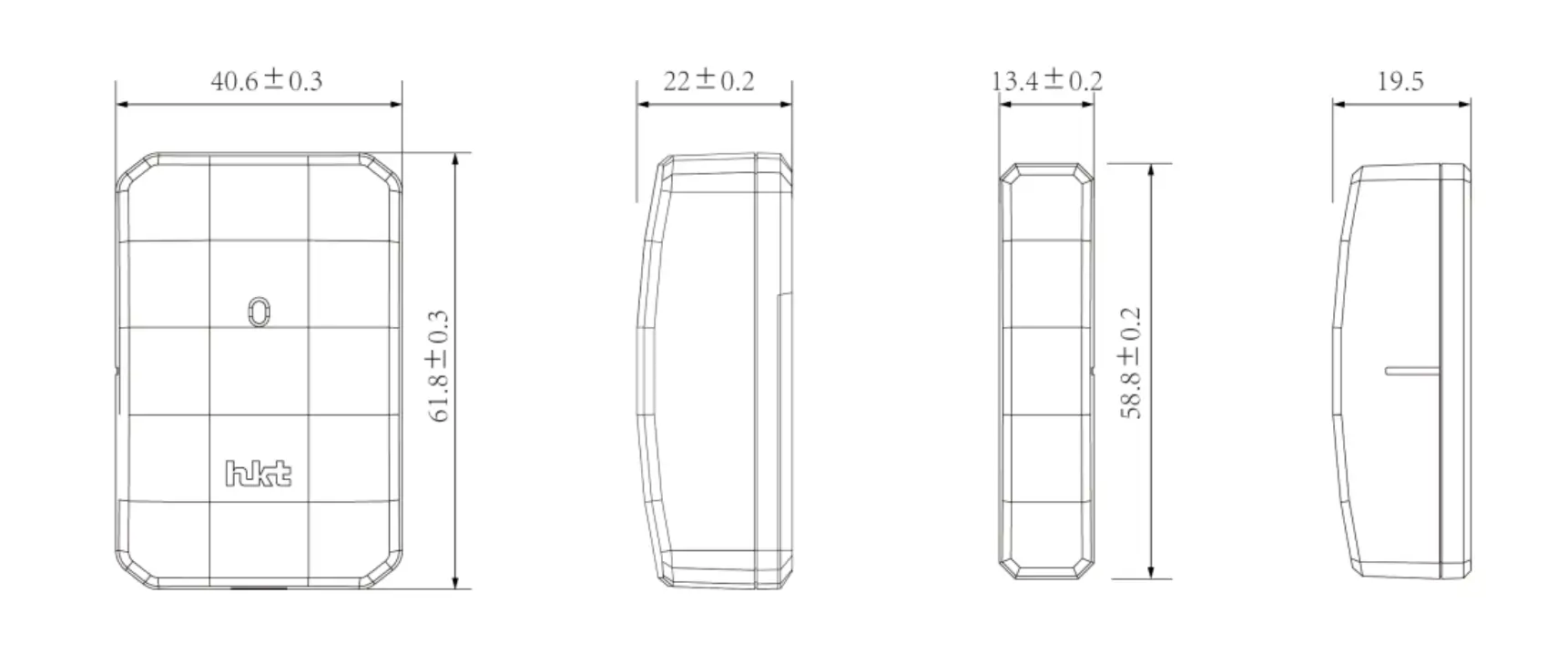

Dimensions

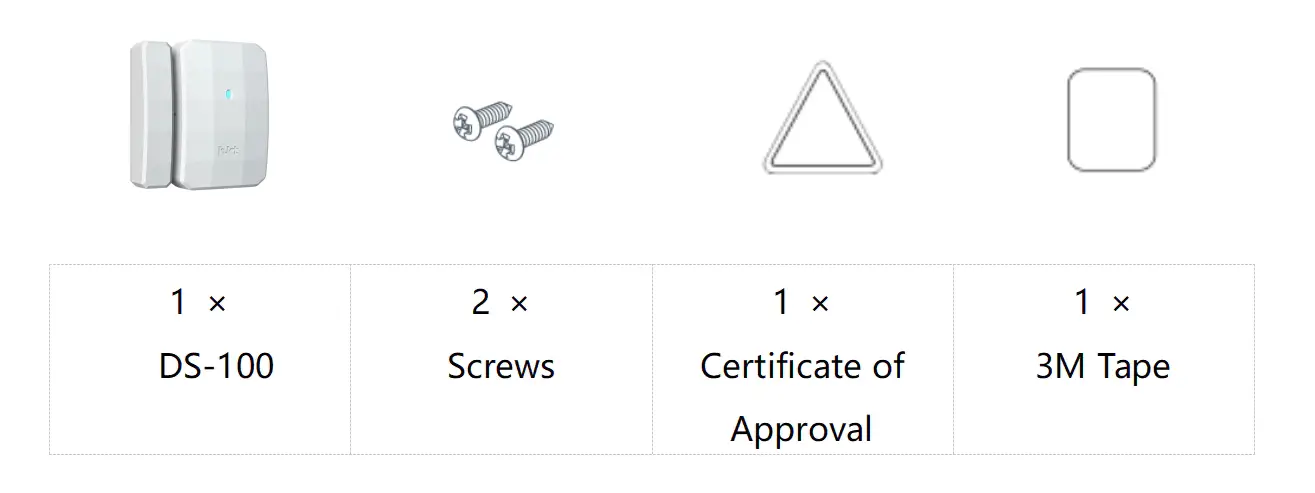

Packing List
Aplicattions
LoRa door sensors offer versatile applications
- Security Systems: Detect unauthorized access and trigger alarms.
- Automation: Integrate with smart homes and buildings for seamless control.
- Industrial Monitoring: Track equipment use and enhance safety protocols.
- Urban Planning: Monitor public spaces in smart city initiatives.
- Manufacturing: Improve efficiency by overseeing access and equipment usage.
