The LoRaWAN Solenoid Valve Controller, features dual solenoid valve interfaces and employs LoRaWAN network communication for the operation of solenoid valve switches.
Features of LoRaWAN Smart Door Lock
- Supports the standard LoRaWAN protocol
- Supports GPS positioning with an accuracy of 5 to 10 meters
- Built-in G-sensor gravity sensor, support object movement detection
- Ingress Protection Rate: IP65
- Supports anti-theft tracking for personnel or objects
- Built-in anti-dismantle sensor
- Built-in 2400mAh rechargeable battery
- Low power consumption
- LORA transmission Range up to 1200m (It depends on the working conditions)
Product Specifications
| CPU | ARM-Cotex M3 CPU Core Clock Speed 32MH 32bit |
| Memory | 128KB Flash 16KB RAM 4KB EEPROM |
| G-sensor | Gravity Detection: 2g / 4g / 8g / 16g |
| GPS | High precision within 5m, support GPS and Beidou positioning |
| Anti-dismantle switch | Closure removed or dismantled detection |
| Switch | Physical button for Power on/off |
| GPS Antenna | 1575.42 MHz, bandwitch ±2MHz 50Ω, gain: 2dpi |
| LoRa Antenna | 1575.42 MHz, bandwitch ±2MHz impedance 50Ω, gain: 2dpi |
| Data Tx rate | 300bps ~ 5.4Kbps |
| Frequency Band | CN 470MHz~510MHz, EU 863MHz~870MHz, US 902MHz~928MHz, AS 920MHz~923MHz, AS 923MHz~925MHz, AU 915MHz~928MHz |
| Protocol | Support LoRaWAN, P2P |
| Max Tx power | 19dBm |
| Rx Sensitivity | ~141dBm (SF12) |
| Battery Volume | 4.2V / 2400mAh rechargeable Li-SoCl2 battey |
| Power input | 5V / 1000mA |
| Operating Temperature | -20℃~60℃ |
| Operating Humidity | 10%~90% |
| Power Supply | Built-in Li-SoCl2 battery |
| Power Voltage | DC 4.2V |
| Standby Current | ≤20uA |
| Rx Current | ≤16mA |
| Tx Current | ≤125mA |
| Ingress Protection | IP65 |
| Product size | 111mm x 65mm x 33,5mm |
| MOQ | 50 SQM |
| NRC | 0.88 from ISO354 |
| Fire protection performance | Class A |
| Eco-Friendly | E1 |

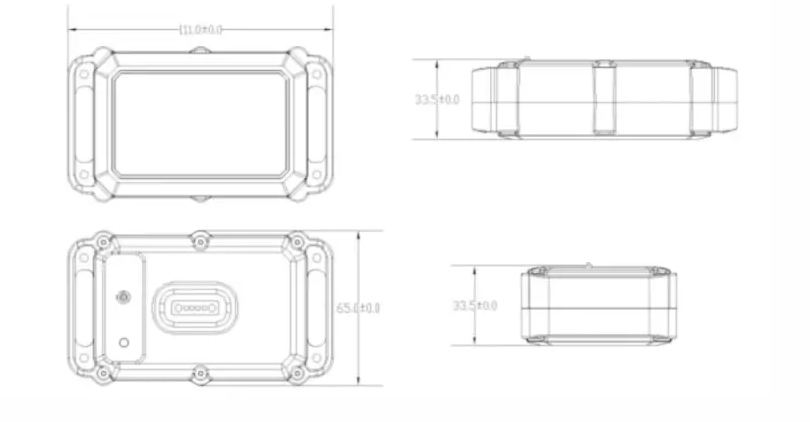

Dimensions
